- PIR Passive Infrared Technology Sensor, Ideal Detection For Small Rooms And Offices
- 120VAC To 277VAC Input Power, 50/60Hz
- Load Ratings @ 120VAC: 660VA Standard Ballast, 600VA Electronic Ballast/CFL/LED, 1000W Tungsten, 1/6 HP Motor
- Load Rating @ 277VAC: 1520VA Standard Ballast
- 3 Conductor, No Neutral Required
- 180 Degree, 1400 Sq. Ft. Coverage
- Operating Temperature 0 to 50 Degrees Celsius (32 To 122 F)
- Maximum Humidity 90% RH Non-Condensing
- UL And cUL Listed
- Programmable For Both Occupancy And Vacancy Modes
- Installation And Adjustment Instructions Are Included In The Box
- Easy Installation, No Neutral Required
- Easy Access Dip Switch Controls, For Motion Sensitivity And Time Adjustments
- Includes Integral Light Level/Daylight Sensor, Adjustable From 1 to 31 footcandles (10.76 lux to 333.68 lux)
- Adjustable Motion Sensitivity From 60% To 100%
- Adjustable Time Delay, From 30 seconds to 20 minutes
- Select Manual, Or Auto ON Modes
- Walk-Through Mode Available, To Maximize Energy Savings
- Ideal For Small Offices, Closets, Private Bathrooms, Small Lounges, Break Rooms
- Low Profile, Modern Aesthetic Design
- Gentec Is A Canadian Manufacturing Company, Since 1959. Sensors Are Shipped From Toronto, Ontario
All, Dimmers, Sensors – Wall

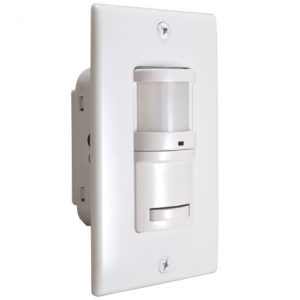

Cristal Controls (Formerly Gentec) CC-WSP1277C PIR, Wall Switch Occupancy Sensor 120V
$59.00
Wall Switch Occupancy Sensor 120V / 277V, PIR Passive Infrared Technology
Commercial Grade, 180 Degree, 1400 Sq. Ft. Coverage, No Neutral Required, White
Equivalent To PW-100, OSS10, IWSZP Sensors
Out of stock
| Weight | 0.3 kg |
|---|---|
| Dimensions | 5.4 × 3 × 2 cm |
| Colour | White |
