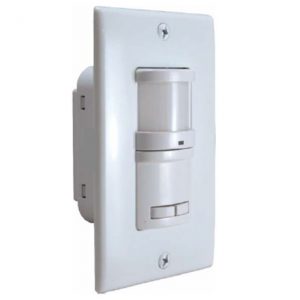

Cristal Controls (Formerly Gentec) CC-WSPD1277C Dual Circuit, PIR, Wall Switch Occupancy Sensor


Dual Circuit Wall Switch Occupancy Sensor 120V / 277V,  PIR Passive Infrared Technology
Commercial Grade, 180 Degree, 1400 Sq. Ft. Coverage, No Neutral Required, White
Equivalent To PW-200, ODSOD-ID, WSD 2P Wall Switch Sensors

Availability: 5 in stock

SKU: CC-WSPD1277C Categories: ,
  • PIR Passive Infrared Technology Sensor, Ideal Detection For Small Rooms And Offices Where Bi-Level Switching Is Required
  • The 2nd Relay Circuit May Be Programmed To MANUAL ON Only, To Comply With Bi-Level Switching Energy Codes, Including CA Title 20/24
  • Dual Circuit, Bi-Level Switching, 120VAC To 277VAC Input Power, 50/60Hz
  • Load Ratings For Both Circuits @ 120VAC:  660VA Standard Ballast, 600VA Electronic Ballast/CFL/LED, 1000W Tungsten, 1/6 HP Motor
  • Load Rating For Both Circuits @ 277VAC: 1520VA Standard Ballast
  • 5 Conductor, No Neutral Required
  • 180 Degree, 1400 Sq. Ft. Coverage
  • Operating Temperature 0 to 50 Degrees Celsius (32 To 122 F)
  • Maximum Humidity 90% RH Non-Condensing
  • UL And cUL Listed, FCC
  • Programmable For Both Occupancy And Vacancy Modes
  • Installation And Adjustment Instructions Are Included In The Box
  • Easy Installation, No Neutral Required
  • Easy Access Dip Switch Controls, For Motion Sensitivity And Time Adjustments
  • Includes Integral Light Level/Daylight Sensor, Adjustable From 1 to 250 footcandles
  • Adjustable Motion Sensitivity From 60% To 100%
  • Adjustable Time Delay, From 30 seconds to 20 minutes
  • Select Manual, Or Auto ON Modes
  • Walk-Through Mode Available, To Maximize Energy Savings
  • Ideal For Small Offices, Closets, Private Bathrooms, Small Lounges, Break Rooms
  • Low Profile, Modern Aesthetic Design
  • Gentec Is A Canadian Manufacturing Company, Since 1959.  Sensors Are Shipped From Toronto, Ontario
Weight 0.3 kg
Dimensions 5.4 × 3 × 2 cm
